V-Force 4 - V-FORCE Reed Valve - MOTO TASSINARI

Item available in about 15 days 15 GG

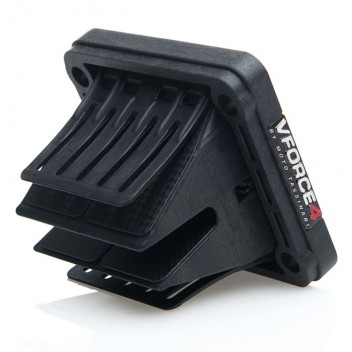

V-Force 4 - V-FORCE Reed Valve - MOTO TASSINARI
-15%
180,56 € 153,48 €
Item available in about 15 days
Code: MTV4144-1
Brand: INNOCENTI, YAMAHA
Price List: 180,56 € vat included
Price hot'n'rare: vat included 153,48 € -15%
Note: - Spares: reeds MT4P522, gasket MTG4144-K
Item available in about 15 days

Type Brand Model From To Note
Vintage (pre-1980) INNOCENTI Lambretta - Imola 186 Kit - -
Scooter YAMAHA Y 125 Z 1998 -
Scooter YAMAHA Z 125 1998 -
Street MC YAMAHA RD 135 1982 1999
Street MC YAMAHA RX 135 1997 2005
Street MC YAMAHA RX-Z 135 1985 2011

Informazioni

The all-new VForce4 is built upon the solid foundation that has made the VForce3 such a success for the last 10 years. While the VForce3 has been continually refined over the years, this is a complete redesign of the entire system.

We jokingly say, "The only thing we didn't change is the bolt pattern." However this is actually quite true. All the components that go into making a VForce reed valve system have been significantly changed since the VForce3.

While the most obvious change on the all-new VForce4 is certainly the full-length reed stops, let's take a look at some of the other significant changes as well…

  • All-new reed petal resin system, carbon fiber and lay-up
  • Pre-curved reed petal ensures better seal at tip
  • Wider reed cage for maximum airflow
  • Combined reed tip area increased by 10.5% resulting in increased total air flow
  • Airfoil shape added to cage tip to increase air velocity from outer ports
  • Long reed stops added to progressively slow petal tip velocity, for increased petal durability
  • Reduced frontal area of central wing by 15.6% combined with a more aerodynamic shape
